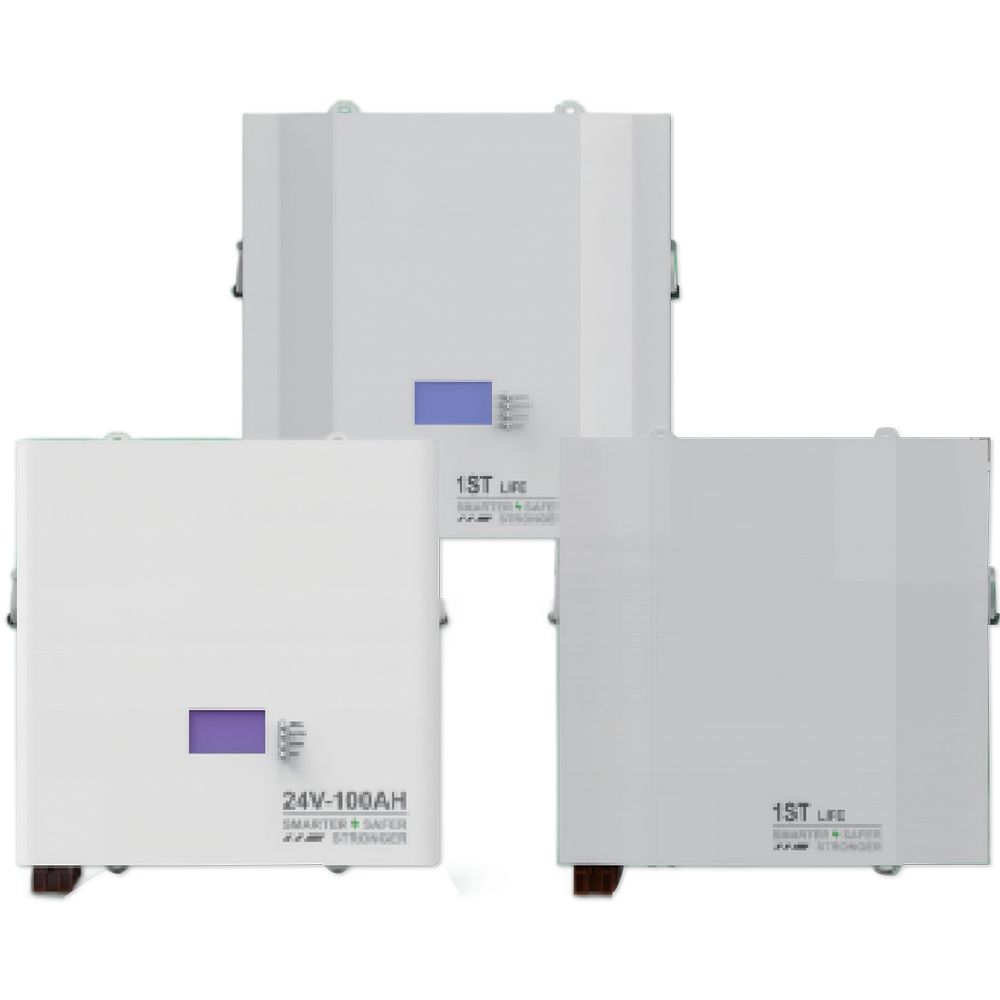

2.5-degree battery pack
Model : OD-2.5K-D
Wall-mounted design, easy installation and maintenance
High-quality Li-ion battery with smart BMS
Remote intelligent monitoring and control
Product features
Wall-mounted design, easy installation and maintenance
High-quality Li-ion battery with smart BMS
Remote intelligent monitoring and control
Product Details
| Model | OD-2.5K-D 2.5-degree battery pack |
| Battery Parameters | |
| Cell Chemistry | LFP |
| Configuration | 8S1P |
| Nominal Energy (Wh) | 2560 |
| Nominal Capacity (Ah) | 100 |
| Nominal Voltage (V) | 25.6 |
| Operating Voltage Range (VDC) | 21.6~28.8 |
| Max Charge/Discharge Current(A) | 100 |
| BMS Communication Protocol | CAN2.0/RS485/RS232 |
| Basic Parameters | |
| Dimensions (L*W*H) (mm) | 375*371*165 |
| Package Dimensions(L*W*H) (mm) | 505*465*275 |
| Net Weight | 25 |
| Gross Weight | 30 |
| Altitude | <4000 m (derating above 2000 m) |
| Display Screen | LCD |
| IP Rating | IP21 |
| Operating Temperature | -20~60 |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Cycle Life | 6000 cycles |
| Installation Method | Wallmounted |
| Certifications | IEC62619 / EN61000-6-1 / EN61000-3 / RoHS / UN38.3 |
