Safe and Reliable

■ High-performance Lithium Iron Phosphate (LFP) batteries adopted, with 314Ah cell capacity and 1P260S series-parallel connection for cell-level safety;

■ Four-fold safety protection: flammable gas detection, water immersion detection, temperature-sensitive aerosol fire extinguishing device, and second-level cell health detection plus early warning;

■ Two-layer BMS architecture (1BCU + 5BMUs) enables real-time battery status monitoring, with multiple protections against overvoltage, overcurrent and overheating, as well as precise control and balanced management.



Stable and Efficient

■ Adapted to peak-valley price difference mode and operating in the high-efficiency inversion range; the PCS maximum efficiency reaches 98.5%, and the system energy cycle efficiency is ≥90%;

■ String-type design enables independent operation of battery clusters without circulating current, with a cycle life of 8000 times (0.5P, 5%~95%DOD, 70%SOH) for high battery utilization;

■ Intelligent liquid cooling temperature control (modules) + air cooling temperature control (PCS) ensures low cell temperature difference, low system power consumption, and ultra-wide temperature operation (-30℃~55℃);
■  Rated AC power 125kW, maximum power 138kW, total current harmonic distortion <3%, providing high power quality and complying with grid connection standards.



Convenient Operation & Maintenance

■ Cloud real-time monitoring + local control; the EMS supports data collection, alarm protection, and power prediction, enabling unattended operation and OTA upgrade;

■ Fully factory pre-assembled with an All-in-One highly integrated and front-rear maintenance design, ensuring convenient transportation, installation, operation and maintenance throughout the process;

■ Modular design supports AC-side parallel operation of multiple cabinets for rapid capacity expansion to meet customized demands of large-capacity energy storage projects;

■  IP54 protection grade, default C3 corrosion protection grade (C4/C5 optional), resistant to high/low temperature and high humidity, suitable for various outdoor environments.

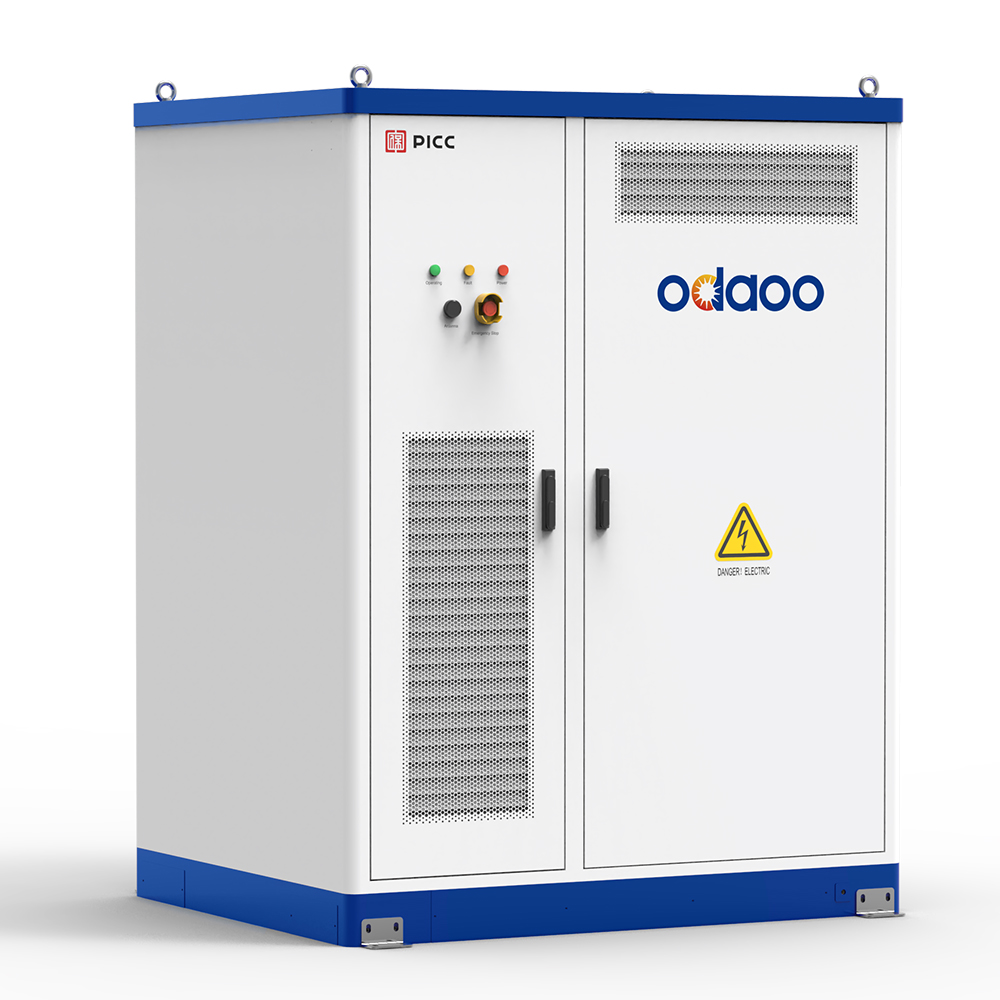

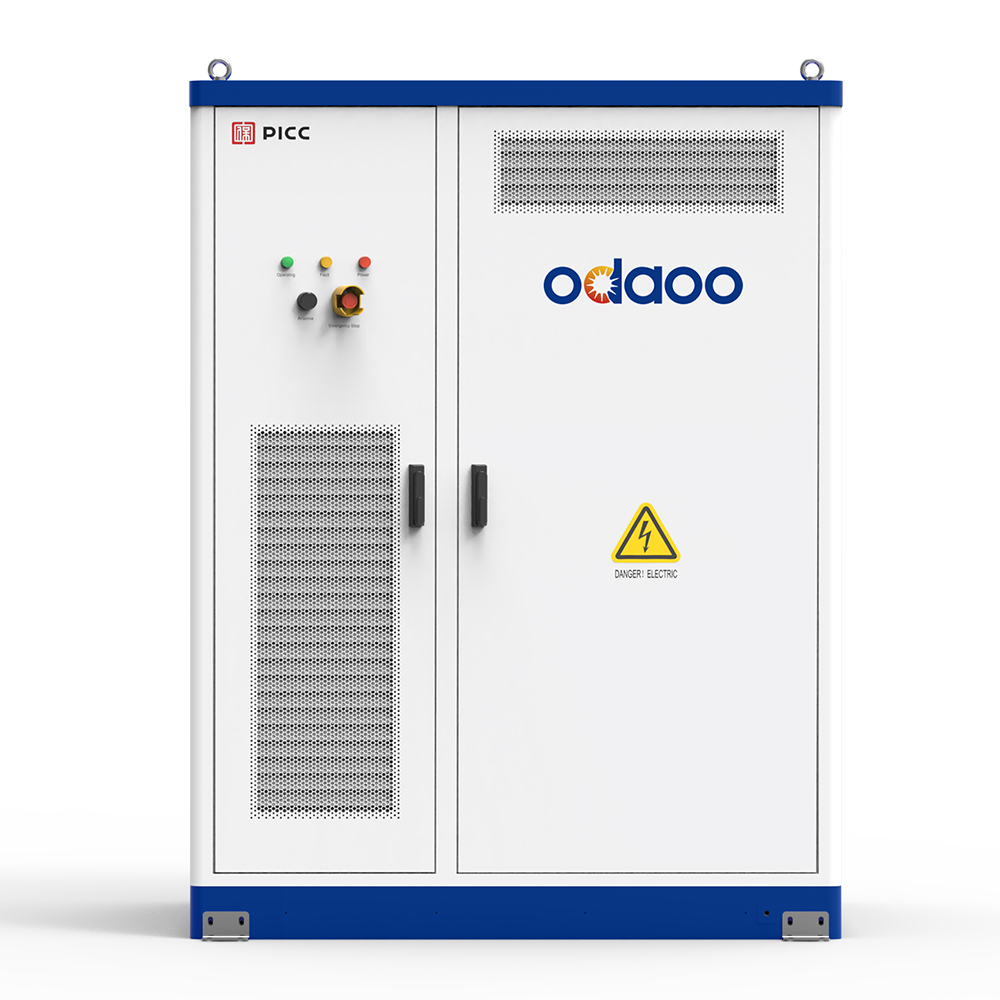

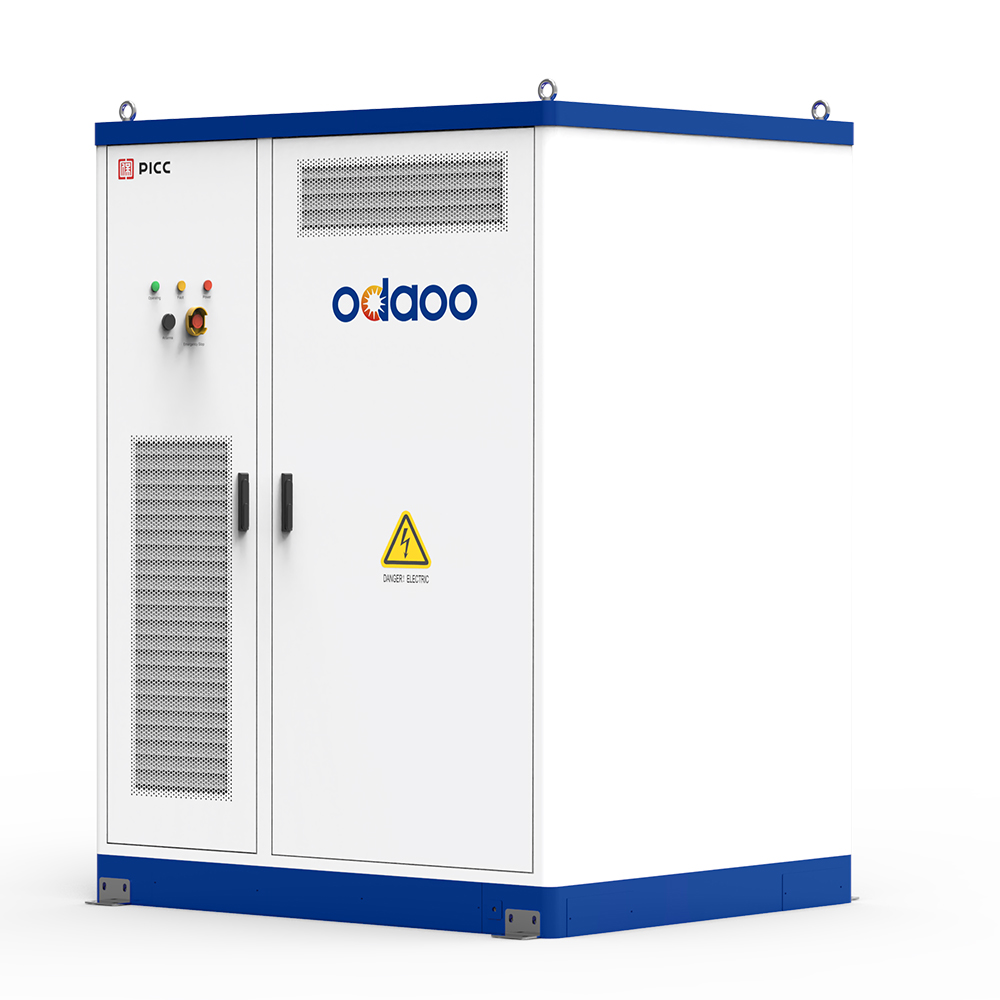

Model	OD125261L2
DC Battery Parameters
Rated Battery Energy	261kWh
Rated Battery Voltage	832V
Battery Voltage Range	780V - 936V
Battery Type	LFP (Lithium Iron Phosphate)
Cell Capacity	314Ah
Standard Charge/Discharge Current	1P
Series-Parallel Connection Mode	1P260S
Module Cooling Method	Liquid Cooling
AC Parameters
Rated AC Power	125kW
Maximum Power	138kW
Maximum Current	200A
Rated AC Voltage	400V
AC Voltage Range	±15%
Rated AC Frequency	50/60Hz
Wiring Mode	Three-phase Four-wire
Total Current Harmonic Distortion (THDI)	<3% (Rated Power)
Total Voltage Harmonic Distortion (THDU)	<3% (Linear Load)
Power Factor	≥0.99/-1~1
PCS Cooling Method	Air Cooling
PCS Maximum Efficiency	98.5%
Photovoltaic DCDC Parameters (Optional)
Max Input Module Power	100kW
MPPT Voltage Range	300V - 650V
PV Max Input Current	100A (Single Channel)
MPPT Channels	2
STS Static Switch Parameters (Optional)
Grid Port Power	250KW
Max Grid Port Current	290A
AC/DC Inverter Port Power	125KW
Critical Load Port Power	125KW
Switching Time	≤20ms
Core System Parameters
Energy Cycle Efficiency	≥90%
Protection Grade	IP54
Corrosion Protection Grade	C3 (Default), C4/C5 (Optional)
Fire Protection Configuration	Aerosol/Perfluorohexanone (Optional)
Isolation Mode	Non-isolated (Transformer Optional)
Relative Humidity	0~95% (Non-condensing)
Ambient Temperature	-20℃~55℃ (Derating above 45℃)
Altitude	<2000m (Derating above 1000m)
BMS Communication	CAN2.0b
EMS Communication	4G/CAN/RS485
Dimensions (W*D*H)(mm)	1692*1385*2220
Approx. Weight	3.0t
Annual Attenuation Rate	<3%
Warranty	5 Years
