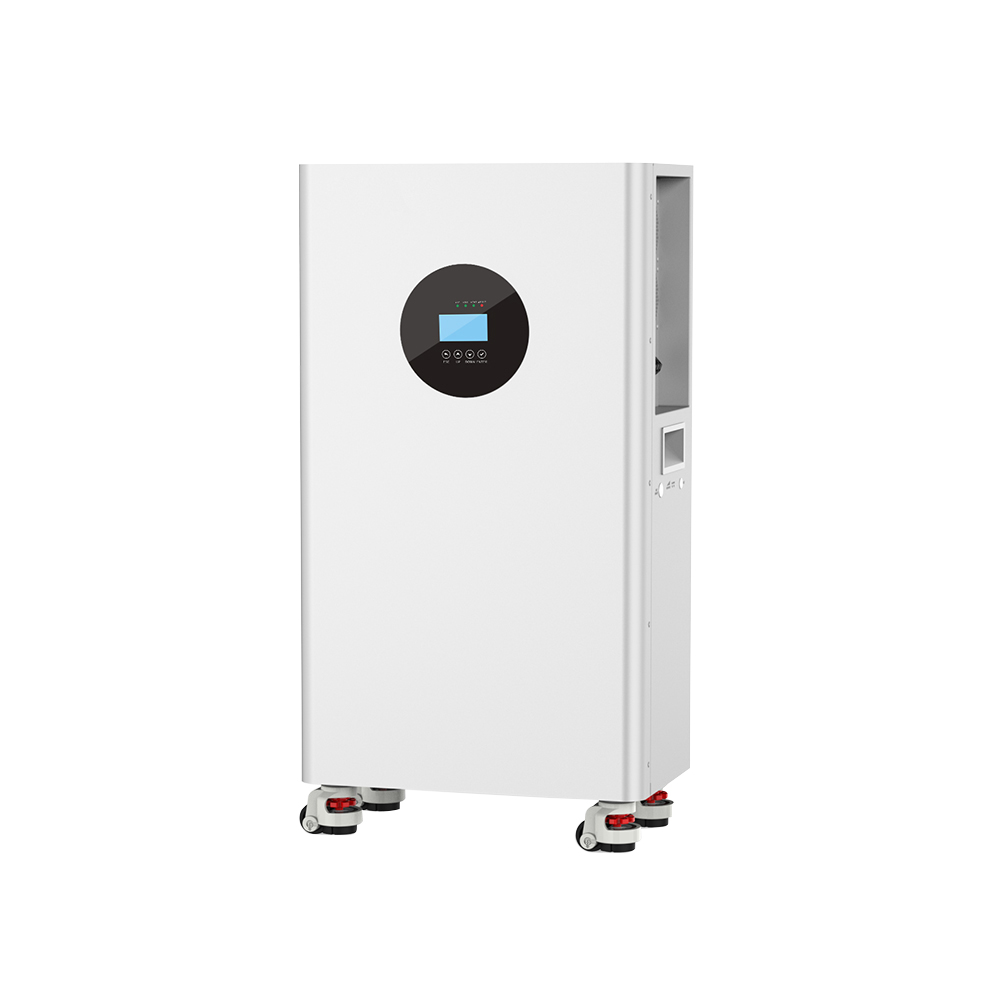

Energy storage and inverter integrated machine
Model:OD-3.6KW-5K-Q
5-degree electric inverter all-in-one machine
Support lithium or lead-acid battery photovoltaic charging,
photovoltaic operation,
Voltage range 40-450V,
pure sine wave,
all-round protection
Product features
5-degree electric inverter all-in-one machine
Support lithium or lead-acid battery photovoltaic charging,
photovoltaic operation,
Voltage range 40-450V,
pure sine wave,
all-round protection
Product Details
| Model | OD-3.6KW-5K-Q |
| Communication input | |
| Rated input voltage | 208/220/230/240；L+N+PE |
| Voltage range | 90~280±3（normal mode）;170~280±3（UPS mode） |
| Frequency | 50/60 (Adaptive) |
| Communication output | |
| Rated power | 3.6 |
| Peak Power | 5.7 |
| Voltage | 208/220/230/240 |
| Power factor | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch time | 10 |
| Sine wave | Sine wave |
| Overload capacity (battery mode) | 60s@102%~110%；10s@110%~130% |
| Maximum efficiency | 92.7%@24VDC |
| Charge | |
| Solar charging type | MPPT |
| Photovoltaic input | 18A/5000W |
| Voltage range | 40~450 |
| Open-circuit voltage | 500 |
| Photovoltaic charging current | 100 |
| Mains charging current | 100 |
| Maximum charging current | 100 |
| Battery | |
| Rated battery voltage | 25.6VDC |
| Rated energy | 5KWh（0.2C，25℃） |
| Available energy (90% depth of discharge) | 4.5KWh |
| Maximum charging/discharging current | 75A/150A |
| Work Voltage range | 20Vdc~29.2Vdc |
| Operating Temperature | -10℃~+50℃ |
| Interface | |
| Display | LCD |
| Communication | USB |
| Monitor | WiFi |
| General Information | |
| Protection level | IP20 |
| Operating Temperature | -10℃~50℃ |
| Relative humidity | 5%~95% |
| Storage temperature | -15℃~60℃ |
| Maximum operating altitude | 4000M |
| Size | |
| Product Size LxWxH | 440*246*760mm |
| Packaging Size LxWxH | 520*436*890mm |
| Weight | |
| Net weight (NW Kg) | 61kg |
| Gross weight (GW Kg) | 65kg |
