Flexible and efficient

■ AC and DC can be designed independently to achieve flexible configuration

■ Without parallel circulation, energy loss is significantly reduced

■ The individual unit is lightweight and easy to install



safe and stable

■ AC and DC can be designed independently to achieve flexible configuration

■ Precision liquid cooling temperature control design ensures long-term stability, with temperature difference among different cells being ≤3℃

■ Battery equalization management to extend battery life



Intelligent Collaboration

■ Intelligent switching strategies for different scenarios: peak shaving, capacity management, dynamic capacity expansion, renewable energy consumption, and planned curve response

■ Local and cloud monitoring linkage, digital rapid diagnosis, intelligent automatic inspection

■ 3S collaboration, EMS closed-loop security logic, achieving system security

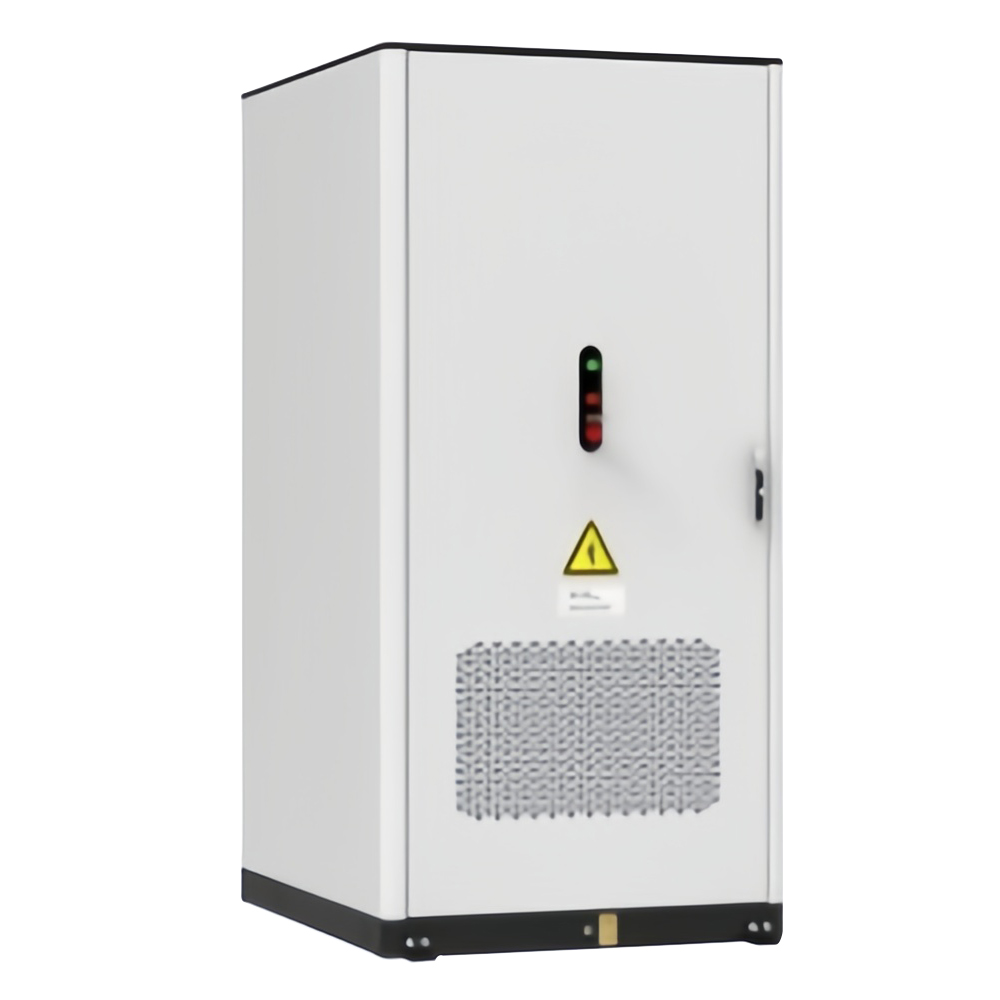

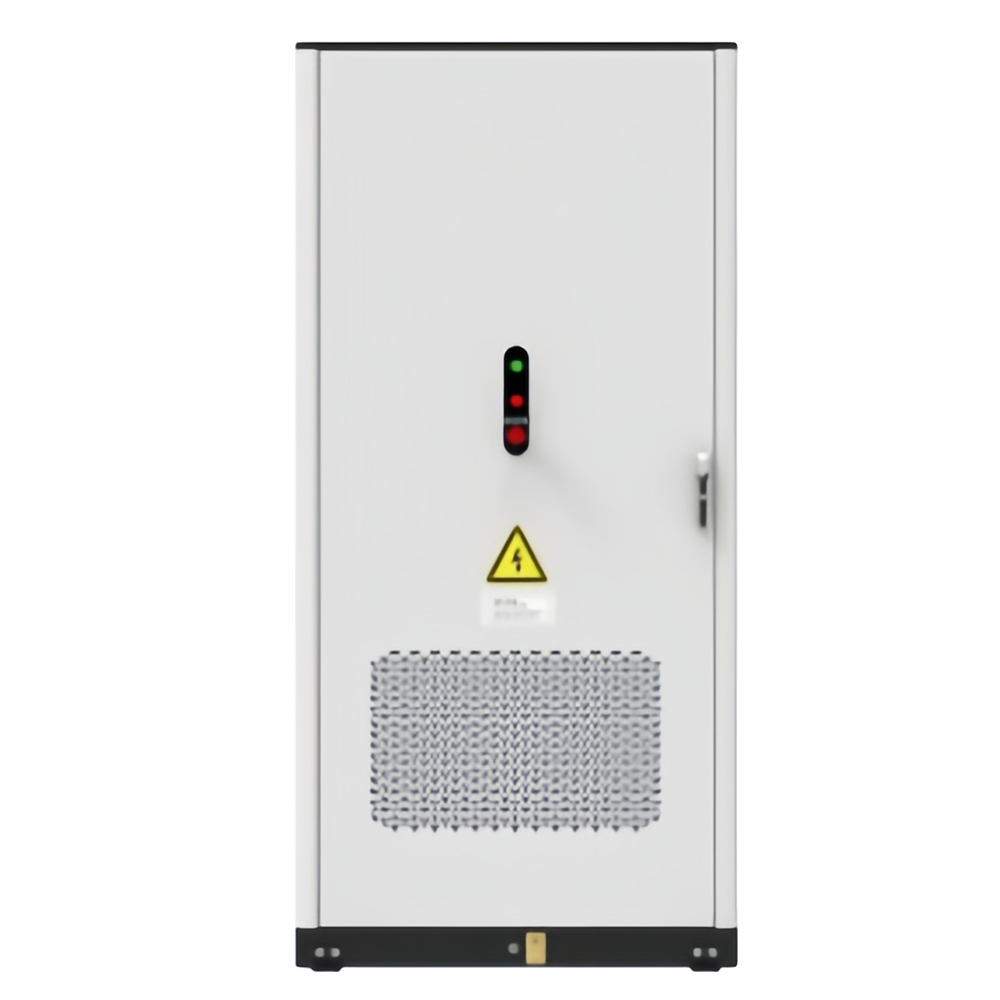

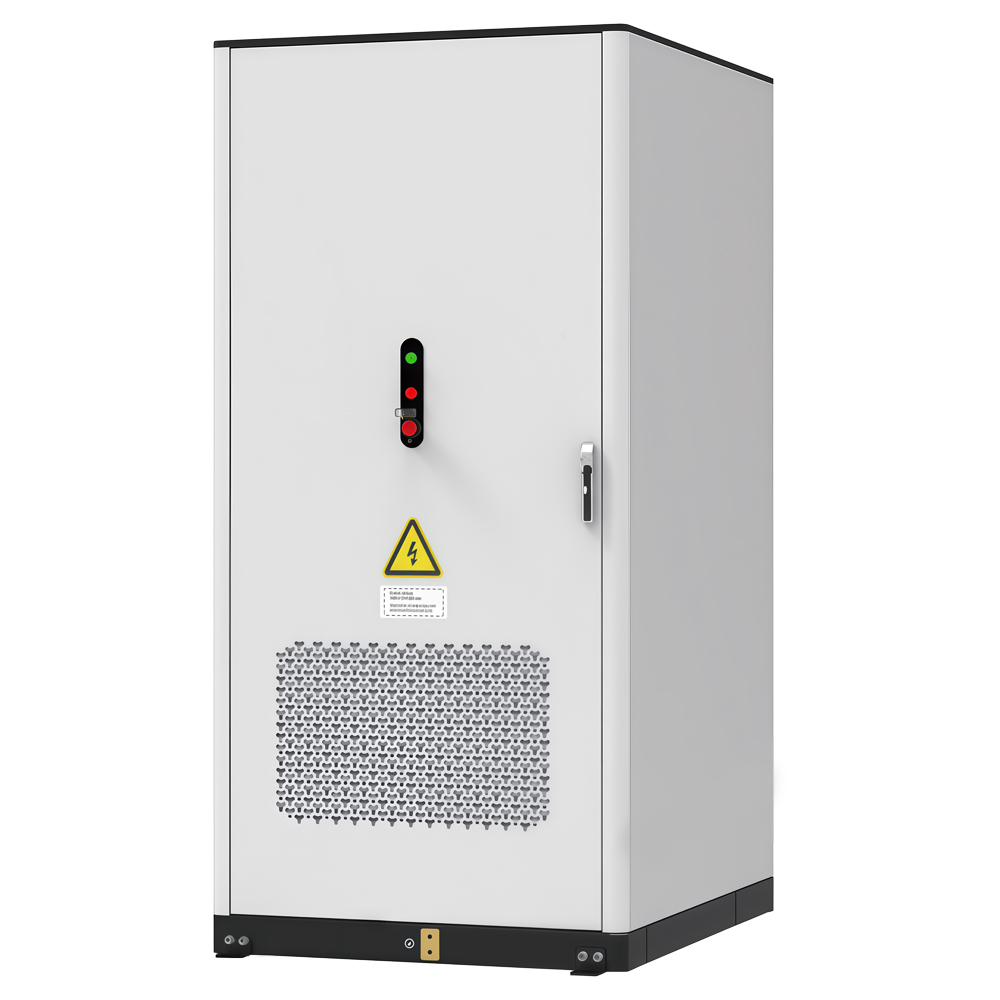

Model	Smart energy storage liquid cooling integrated cabinetOD-Cube-CAB/M-L125/261
Grid-connected AC parameters
Rated power	kW	125
Maximum output power	kW	137.5
Rated grid voltage	Vac	380
Allowable grid voltage	Vac	340~460
Rated grid frequency	Hz	50
Power factor	-1(ahead of time)~1(lag)
THDI	<3%(Rated output power)
Access method	three-phase four-wire
Off-grid communication parameters
Rated output voltage	Vac	380
Rated output power	kW	125
Rated output frequency	Hz	50
THDU	%	<3(linear load)
Access method	three-phase four-wire
Off-grid communication parameters
Rated output voltage	Vac	380
Rated output power	kW	125
Rated output frequency	Hz	50
THDU	%	<3(linear load)
overload capacity	1. Long-term (45℃). 1.2 times for 1 minute
Battery parameters
Battery system capacity	kWh	261
Cell Type	V/Ah	LFP 3.2/314
Battery system configuration	1P260S
Rated voltage	Vdc	832
Voltage range of the battery	Vdc	689~949
System efficiency
Maximum efficiency of converter	%	≥98.5
Maximum system efficiency	%	≥88
Charge-discharge rate	P	≤0.5
Protect
DC input	have
Converter AC Protection	have
Communication Output Protect	have
Overvoltage Protect	DC Type Il/AC Type ll
Fre protection system	Perfluorohexanone + water fire coupling
Conventional Parameters
Size (Width × Depth × Height)	mm	1150*1450*2400
Weight	t	2.5
wiring method	bottom-in-bottom-out
Environment temperature	℃	- 20~+60
Environment Humidity	%	≤95
Working altitude	m	≤3000 (3000m above derating)
Protection level	IP54
cooling method	liquid cooling
Communication
Communication way	RS485/CAN/Ethernet
