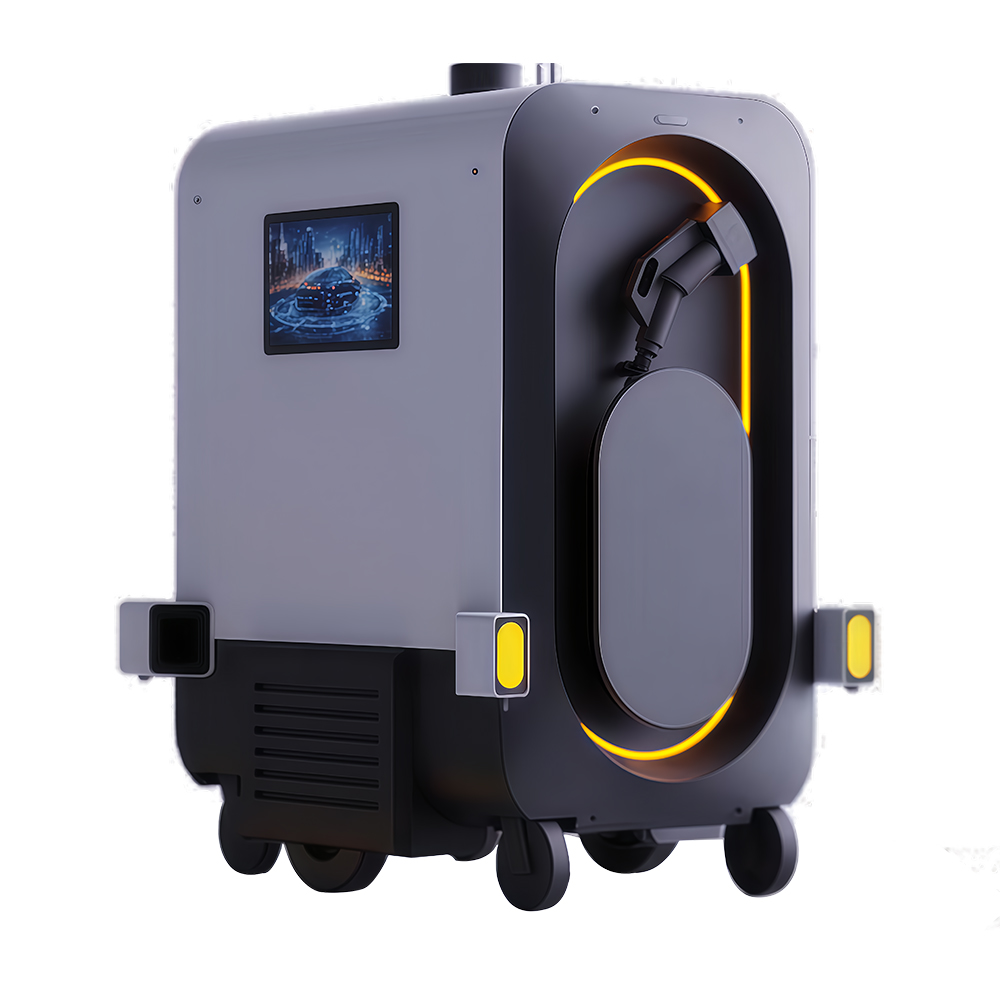

Mobile storage and charging machine
Model:120kWh-150kWh
 |
 |
 |
High-efficiency lithium iron phosphate battery |
High-precision MPPT controller |
High-precision MPPT controller |
| 314Ah high-capacity battery cell, with 8000 cycles, ensures long-lasting and stable power supply. | Long battery life, stable power supply/reduces frequent charging, cost-effective/quick installation, plug and play. | Operating temperature: -10℃ to 50℃ / Storage temperature: -20℃ to 45℃ / Free movement indoors, with reliable fixation. |
Product features
|
|
|
High-efficiency lithium iron phosphate battery |
High-precision MPPT controller |
High-precision MPPT controller |
314Ah high-capacity battery cell, with 8000 cycles, ensures long-lasting and stable power supply. |
Long battery life, stable power supply/reduces frequent charging, cost-effective/quick installation, plug and play. |
Operating temperature: -10℃ to 50℃ / Storage temperature: -20℃ to 45℃ / Free movement indoors, with reliable fixation.。 |
Product Details
| Model | OD1-120kWh |
OD1-150kWh |
| Basic Parameters | ||
| Size |
1200*1300*1600mm |
1500*1400*1600mm |
| Weight | <1300kg |
<1500kg |
| Display Screen | 7-inch LCD screen |
|
| Energy parameters | ||
| Battery capacity |
120kWh |
150kWh |
| Communication method with car battery | CAN |
|
| Output voltage |
200-1000V |
|
| Constant charging power output voltage | 250-1000V |
|
| Maximum output power during charging | 60kW |
60-120kW |
| Maximum output current for charging | 100A-150A Direct current |
|
| Charge input voltage | DC 200-1000V / AC 380V |
|
| Maximum input power for power replenishment | 60kW |
60-120kW |
| Monthly self-discharge | ≤3%/ month |
|
| SOC（10%-90%Charging time） | ≤60min(25℃) |
|
| Number of battery cell cycles | ≥8000次 （SOH>80%) |
|
| Charging output interface | National standard/American standard/European standard DC charging gun |
|
| Power replenishment input interface | GB/US/EU DC charging ports |
|
| Barrel length | 7m |
|
| Number of gun lines | 1 pcs |
1条（Optional 2 pcs） |
| Thermal management method | Air cooling |
|
| System parameters | ||
| Energy cycle efficiency | ≥90% |
|
| Protection level | IP54 |
|
| Corrosion resistance grade | C3 default，C4/C5 optional |
|
| firefighting | Aerosol/Perfluorohexanone (optional) |
|
| relative temperature | 0~95%（No condensation） |
|
| Environment temperature | -20℃~55℃（45℃ above derating） |
|
| Altitude | <2000m (Over 1000m derating） |
|
| annual attenuation rate | <3% |
|
| Warranty | 5 year |
|
